Introduction
Rotating the blade head on a bridge saw is one of the most common adjustments stone fabricators make. This operation enables angled cuts like 45° miters for countertop seams and edge profiles. Yet it's also one of the most frequently mishandled procedures in stone fabrication, leading to inaccurate cuts, wasted material, and equipment damage.
Many operators conflate blade rotation—the speed at which the blade spins (RPM)—with blade head rotation, the physical tilting of the cutting head to a set angle. This guide covers the latter. Whether you're running a manual bridge saw with mechanical adjustments or a CNC model with programmable angles, the core principles are the same.
TL;DR
- Rotating the blade head means tilting the cutting head to an angle—most commonly 45° for miter cuts
- Always power down completely and wait for blade stoppage before touching rotation hardware
- Unlock the rotation mechanism, dial in your angle on the machine's scale, and confirm it with an external gauge
- Re-secure the lock firmly and reposition water jets after every rotation
- Run a test cut on scrap material before cutting production stone
Before You Start: When and What to Prepare
Not every job requires blade head rotation. Skipping it when it's not needed avoids misalignment and wasted setup time.
When to Rotate the Blade Head
Blade head rotation is required for:
- 45° miter cuts for edge profiles and countertop seams — the most common application
- Bevel cuts for decorative edges or custom profiles
- Angled sink or cooktop cutouts when specs call for non-perpendicular edges
Most straight rip cuts and standard plunge cuts do not require head rotation. The blade stays at 90° (vertical) for these operations.
Manual vs. CNC Operation:
On manual bridge saws, head rotation is a hands-on mechanical adjustment using locks and pivot mechanisms. On CNC bridge saws, the cutting head may feature programmable 5-axis interpolation that automates angle positioning — know which type you're running before you begin.
What You Need Before Starting
Tools and Verification Equipment:
- Digital angle gauge or combination square — 0.1° resolution or better for reliable angle verification
- Rotation lock hardware — confirm all bolts, clamps, or levers are intact before adjusting
- Scrap stone piece — always run a test cut before production work
- PPE — safety glasses (ANSI Z87.1) and hearing protection (NRR 20+ for exposures over 85 dB)
Pre-Adjustment Inspections:
Before rotating the head, verify:
- Blade condition — cracks, missing segments, warping, or uneven wear will produce unreliable results at any angle; inspect carefully before proceeding
- Water supply — confirm adequate flow and pressure
- Blade guard — must be secure and properly positioned before any cut
How to Rotate the Blade Head in a Bridge Saw: Step-by-Step
Step 1: Power Down and Secure the Machine
Turn off the saw motor completely and wait for the blade to come to a full stop. Never attempt to rotate the head while the blade is spinning—this violates OSHA lockout/tagout requirements and puts you at serious risk of blade contact injury.
Engage the emergency stop or machine lock to prevent accidental startup during adjustment. Visually confirm the blade is completely stationary before proceeding.
Step 2: Locate and Unlock the Blade Head Rotation Mechanism

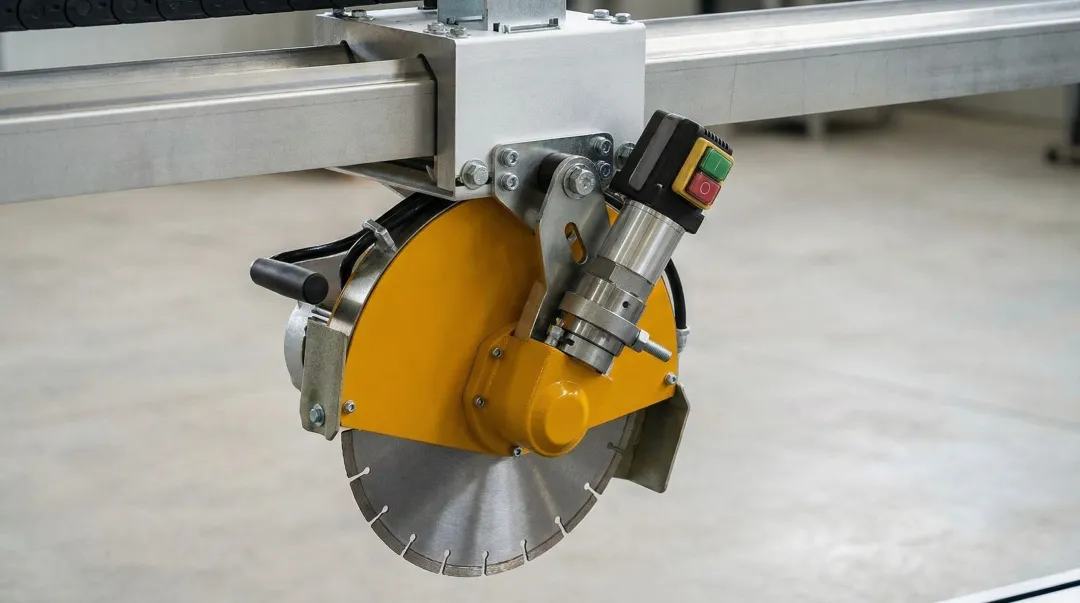

Identify the blade head tilt lock on your specific saw model. This is typically:
- A locking bolt with hex head
- A clamp handle or lever
- A pneumatic brake valve (on air-powered systems)
The lock is located on the rotation axis of the cutting head assembly. Consult your machine's manual if the location is unclear—different manufacturers place locks in different positions.
Loosen the lock hardware just enough to allow free head rotation. Do not fully remove bolts, as this risks losing components or misaligning the pivot mechanism.
Step 3: Rotate the Head to the Target Angle
Using the machine's built-in angle scale, slowly rotate the cutting head to your target angle. For miter cuts, this is typically 45°. Some machines support custom angles anywhere from 0° to 90°.
Apply steady, controlled force. If the head resists movement, stop immediately—this may indicate a damaged or dirty pivot mechanism requiring cleaning or lubrication before proceeding.
Step 4: Lock the Blade Head Firmly in Place
Re-tighten the rotation lock hardware to the manufacturer's specified torque. Under-tightening is the most common cause of head drift during cutting, which ruins accuracy.
After locking, attempt to manually move the head. There should be zero play in the locked position. If the head moves even slightly, re-tighten the lock.
Step 5: Verify the Angle with an External Tool
Once the head is locked, confirm the angle with an external tool—don't rely solely on the machine's built-in scale. Built-in scales degrade in accuracy over time due to wear and mechanical drift.

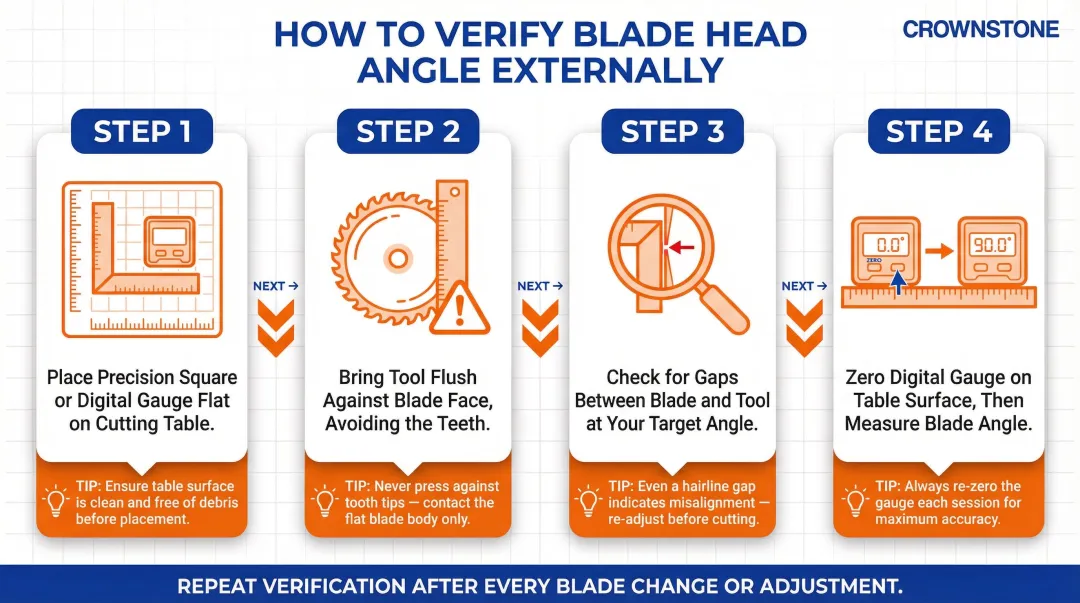

- Place a precision square or digital angle gauge flat on the cutting table
- Bring the tool flush against the blade face (avoid the teeth)
- Check for gaps between the blade and the tool at the target angle
- If using a digital gauge, zero it on the table surface first, then measure the blade angle
There should be no visible gap if the angle is correct. Even 0.5° of error becomes visible in miter seams where two pieces must meet precisely.
Step 6: Adjust Water Flow and Run a Test Cut
Reposition adjustable water jets or nozzles so water reaches the blade-to-stone contact point. Angled cuts shift the geometry of the cut zone, and inadequate water flow causes blade overheating and thermal cracking in stone.
Run a test cut before moving to production material:
- Select a scrap piece of the same material you'll be cutting
- Make a full-depth cut at the new angle
- Measure the resulting cut angle with your gauge
- Confirm accuracy before committing to expensive slab material
Key Parameters That Affect Rotation Accuracy and Cut Quality
Even a correctly executed head rotation can produce poor results if these variables aren't controlled.
Lock Integrity
The firmness of the rotation lock directly determines whether the blade head holds its angle throughout the cut. A partially tightened lock allows micro-movement under cutting resistance, causing angle drift.
Manufacturer specifications typically call for torque values around 45 N·m (33 lb-ft) for blade shaft hardware. Specific torque specs for rotation locks vary by machine, but under-tightened hardware is a primary cause of cut inaccuracy across all of them.
Angle Verification Method
The difference between reading the machine's built-in scale versus using a calibrated external tool is significant:
- Built-in scales degrade with use, vibration, and mechanical wear
- External tools (digital gauges, precision squares) provide calibrated reference
Skipping external verification is especially costly on miter joints, where both pieces must meet at precisely 45° to create a seamless 90° corner — any cumulative error shows up immediately in the fit.
Blade Condition and Blade Size
A worn, warped, or incorrect-diameter blade affects cut trueness at any angle. Different blade diameters require different RPM settings to maintain optimal surface feet per minute (SFPM):

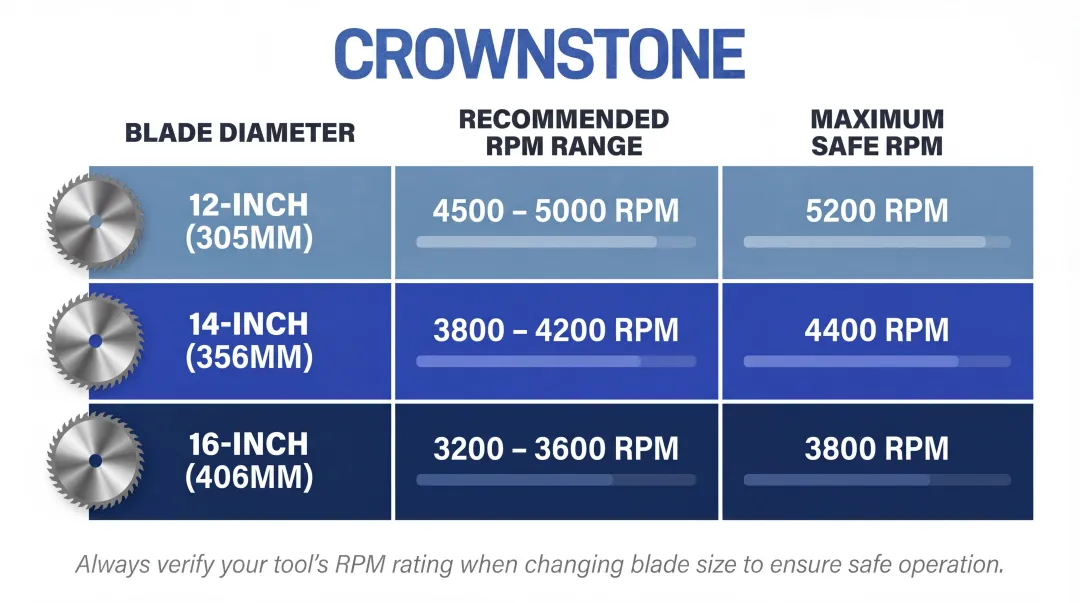

| Blade Diameter | Recommended RPM | Max Safe RPM |
|---|---|---|
| 12" (305mm) | 3,000 - 3,024 | 5,095 - 6,300 |
| 14" (356mm) | 2,500 - 2,600 | 4,365 - 5,460 |
| 16" (406mm) | 2,200 - 2,268 | 3,800 - 4,725 |
If you change blade size, verify RPM settings alongside any head rotation adjustment.
Water Flow Direction
After rotating the cutting head, the water stream may no longer reach the blade-to-stone contact point at all. Inadequate cooling accelerates blade wear and causes thermal cracking in stone — particularly visible in white or light-colored materials.
Water must be distributed evenly on both sides of the blade and focused at the cut point, so reposition nozzles after every head rotation.
Common Mistakes and Troubleshooting When Rotating the Blade Head
Most of these mistakes result in scrapped cuts or re-work — and nearly all of them are avoidable.
Mistake: Rotating While the Blade Is Still Moving
Risk: Crush or laceration injury to the operator, plus potential damage to the pivot bearing and rotation mechanism.
Prevention: Always enforce a full power-down protocol. Engage the emergency stop, wait for the blade to come to a full stop, then handle any rotation hardware.
Mistake: Over-Relying on the Built-In Angle Scale
Problem: The machine's angle scale is a starting reference, not a precision instrument. Cuts that need to mate—like miter seams—will reveal even 0.5° of error in the finished piece.
Solution: Always verify with an external digital angle gauge or precision square before cutting. A 0.016" (16 mil) gap is visible in miter joints, and angular errors directly correlate to seam gap errors.
Problem: Cut Angle Is Slightly Off Even After Locking
The head likely drifted during tightening, or the lock hardware wasn't fully seated. Re-loosen the rotation lock, reposition the head while maintaining pressure in the correct direction, then retighten firmly and re-verify with your external tool.
Problem: Blade Vibrates or Chatters Excessively During Angled Cuts
The blade head may not be fully locked, or the pivot mechanism has developed play from worn components. Check these three things:
- Confirm lock tightness by attempting to manually move the head
- Inspect the pivot joint for wear or loose hardware
- Reduce feed rate to rule out speed as a contributing factor
Problem: Stone Chips or Burns at the Cut Line During Angled Cuts
After rotating the head, water jets often no longer track the contact point — and feed rate that worked at 90° may be too aggressive at 45°. Address both:
- Reposition water jets to ensure coverage at the angled cut point
- Reduce feed rate, particularly for 45° cuts on white or light-colored materials prone to visible heat damage
- Confirm blade condition — worn segments cause increased friction and heat
Conclusion
Rotating the blade head is a straightforward mechanical process when approached systematically: power down, unlock, rotate, lock firmly, verify externally, adjust water flow, and always test on scrap before production cutting.
Most failures—inaccurate angles, chipped edges, blade drift—trace back to skipping verification steps or under-tightening the rotation lock, not to the machine itself. Discipline in the process protects both your equipment and your material investment.
That said, the machine itself plays a real role. Crown Stone USA builds their bridge saws with pneumatic indexing systems that pull the table to exact 45° and 90° positions, locked in place by air-cylinder powered brakes—engineered to hold at any angle without relying on operator feel alone. The company was founded by fabricators who spent years cutting, lifting, and installing stone, so the adjustment mechanisms reflect how that work actually happens on the shop floor.
To learn more about Crown Stone USA bridge saws, call 727-239-9875 or email info@crownstoneusa.com.
Frequently Asked Questions
Which way should a saw blade rotate?
A bridge saw blade should rotate downward into the material at the cutting point (downcut direction). This minimizes chipping on the visible face of the stone and is the standard factory orientation for diamond blades. Directional arrows printed on the blade core indicate proper rotation.
Are circular saw blades reversible?
No. Most diamond blades used on bridge saws are not reversible—they are engineered to rotate in one specific direction. Running them in reverse causes rapid segment wear, overheating, and bond failure. Check the directional arrow on the blade core before every installation.
What angle should I set my bridge saw blade head for miter cuts?
45° is the standard blade head angle for miter cuts on countertops and edge profiles. Both pieces of a miter joint must each be cut at 45° to produce a clean 90° seam when joined together.
How do I verify my blade head is at the correct angle after rotating?
Zero your digital angle gauge on the cutting table first, then place it flush against the blade face. Confirm there is no gap between the tool and blade at the target angle. A precision combination square works as a reliable backup.
Can I rotate the blade head while the saw motor is running?
No. The motor must be fully off and the blade completely stopped before any adjustment to the rotation mechanism. OSHA lockout/tagout standards require this — skipping it risks injury and damages the pivot assembly.
How often should I re-verify blade head alignment after rotating?
Verify alignment every time the head is rotated to a new angle. During extended production runs, re-check every 30–45 minutes — vibration and repeated cutting load can cause minor drift over time.
