Introduction
Walk into any stone fabrication shop, and you'll find two machines dominating the production floor: the bridge saw and the CNC stone router. For fabricators—especially those starting out or scaling up—understanding what each machine actually does isn't academic. It's a make-or-break decision that directly impacts what you can cut, what you can charge for it, and how fast you can turn jobs around.
Here's where confusion typically starts: a "CNC bridge saw" is still a bridge saw, just computer-controlled. It's fundamentally different from a "CNC stone router," and choosing the wrong one—or skipping one entirely—leaves orders on the table and margins on the floor.
TL;DR
- Bridge saws use diamond blades for straight and angled cuts across stone slabs—the backbone of high-volume countertop production
- CNC stone routers run spindles with interchangeable bits for edge profiling, sink cutouts, engraving, and custom shaping
- Bridge saws dominate speed and cost-efficiency for repetitive straight-line cutting
- CNC routers handle precision detailing and complex custom designs through CAD/CAM programming
- Most full-service shops run both in sequence: bridge saw sizes the slab, CNC router finishes the details

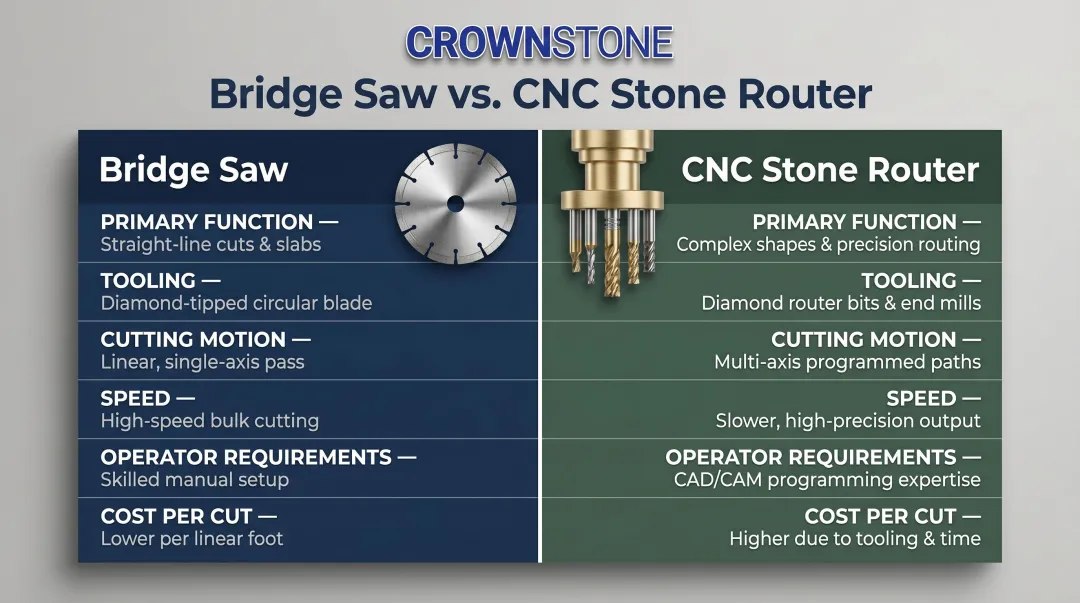

CNC Stone Router vs Bridge Saw: Quick Comparison
Here's how the two machines compare across the specs that matter most in a fabrication shop:
| Feature | Bridge Saw | CNC Stone Router |
|---|---|---|
| Primary Function | Straight cuts, bevels, miter cuts | Edge profiling, shaping, carving, cutouts |
| Tooling | Large diamond saw blade (14–24") | Router bits, profile wheels, core bits |
| Cutting Motion | Lateral blade pass across fixed table | Multi-axis spindle movement (3–5 axes) |
| Typical Use Cases | Slab sizing, countertop blanks, straight cuts | Edge profiles, sink cutouts, engravings, decorative work |
| Operator Requirements | Straightforward setup, minimal training | CAD/CAM programming knowledge required |
| Speed | Fast throughput on straight cuts | Slower, precision-focused operations |
| Cost per Cut | Low (blade only consumable) | Higher (specialized diamond tooling) |
Each machine handles a distinct stage of the fabrication workflow. Shops that run both eliminate the bottlenecks that come from asking one machine to do everything.
What Is a Bridge Saw?
A bridge saw is a gantry-style cutting machine with a large diamond blade mounted on a motorized bridge that travels across a fixed worktable. The "bridge" refers to the overhead rail structure supporting the blade assembly. This setup delivers high cutting force ideal for slicing through dense materials like granite, quartz, and marble with precision and speed.
Core Mechanical Operation:
The blade—typically 14 to 24 inches in diameter—spins at controlled RPM with continuous water cooling while the bridge moves laterally across the slab. This combination of blade rotation and lateral bridge travel enables precise straight cuts and miter/bevel cuts through full-size stone slabs. Typical bridge saws operate with blades at 1,725 to 3,400 RPM depending on the model, powered by motors ranging from 5.5 to 20 HP.
CNC Bridge Saw vs. Manual Bridge Saw:
A CNC bridge saw is still fundamentally a bridge saw—the "CNC" designation means movements are computer-controlled rather than manually positioned. This automation allows programmed cut sequences and repeat accuracy across multiple slabs, but it doesn't add routing or carving capability. Whether manual or CNC, a bridge saw cuts with a blade, not a spindle.
Bridge saws offer several operational advantages for production shops:
- Fast throughput on straight cuts—essential for high-volume countertop production
- Consistent bevel and miter capability for edge treatments and seams
- Low consumable costs (diamond blade is the primary wear item)
- Straightforward operator training with minimal learning curve
- Minimal downtime when designed with robust construction and serviceable components
Use Cases for a Bridge Saw
Bridge saws handle the first and most critical step in most fabrication workflows: sizing raw stone slabs down to workable countertop pieces. This foundational cut determines material yield and waste — making it the highest-stakes operation in the shop.
Bridge saws dominate in three specific contexts:
- High-volume countertop production shops processing kitchens and bathrooms daily
- Slab distribution and sizing centers cutting blanks for multiple downstream fabricators
- Operations where batch processing of standard-dimension pieces drives the business model
According to a 2024 Natural Stone Institute review of stone fabrication workplace studies, 72% of surveyed fabrication shops (34 of 47) use a bridge saw for initial granite slab cuts, making it the default starting point for most fabrication shops.
Crown Stone USA manufactures the Avalanche Pro bridge saw at their Clearwater, Florida facility. It's a machine designed by working fabricators who understand real-world shop demands, refined through 10 rigorous design iterations across multiple prototype generations before reaching the market.
That fabricator-focused engineering shows in the details. The Avalanche Pro prioritizes reliability and low downtime, with less than 2% of components by value sourced from China — meaning parts are available domestically and service delays are short.
What Is a CNC Stone Router?
A CNC stone router is a computer-controlled machine with a motorized spindle that moves along multiple axes—typically 3 to 5—carrying interchangeable diamond tooling to cut, shape, profile, and engrave stone with high precision. Unlike a bridge saw where the operator positions the blade path, the CNC router's tool path is fully programmed via CAD/CAM software.
How the Spindle System Works
The spindle moves in X, Y, and Z directions at high RPM using small-diameter tooling—router bits, finger bits, and profile wheels—rather than a large saw blade. Key mechanical specs at a glance:
- Spindle axes: 3 to 5 (depending on machine configuration)
- Operating RPM: 5,000–9,000 RPM — far slower than woodworking routers (18,000+ RPM) because stone requires grinding, not shearing
- Tooling type: Diamond-tipped bits and profile wheels, not standard carbide
- Cooling: Stone applications require water or air cooling; water-cooled spindles are mandatory for continuous production work to prevent thermal damage
Can a CNC Router Cut Stone?
Yes—but only when equipped with diamond-tipped router bits and profile wheels specifically engineered for stone. Standard woodworking or metalworking bits fail immediately because they rely on shearing action, while stone requires grinding.
Diamond tooling (Mohs hardness 10, Vickers hardness over 8,000 HV) far outperforms tungsten carbide (approximately Mohs 9, Vickers 1,600–2,500 HV). Diamond tools last 50 to 100 times longer than carbide on abrasive stone materials, making stone-specific tooling non-negotiable.
CAD/CAM Software Integration
CNC stone routers require design files—typically DXF or DWG formats from programs like AutoCAD, Alphacam, or Cabinet Vision—to generate toolpaths. This software converts 2D or 3D designs into machine instructions (G-code) that the router executes automatically.
The programming requirement is the primary skill difference versus a bridge saw and adds setup time. The payoff: design complexity with no practical ceiling.
Use Cases for a CNC Stone Router
CNC routers handle work that bridge saws simply cannot:
- Edge profiling: ogee, bullnose, waterfall, bevel, and custom edges
- Sink and cooktop cutouts with precise curves and radiused corners
- Decorative engravings and surface texturing
- Lettering for memorials and monuments
- Custom mosaic, inlay work, and 3D relief carving
They're the go-to machine for:
- Custom high-end countertop shops differentiating on design
- Memorial and monument carvers requiring precision lettering
- Architectural stone detailing on commercial projects
- Operations building revenue around design-differentiated services

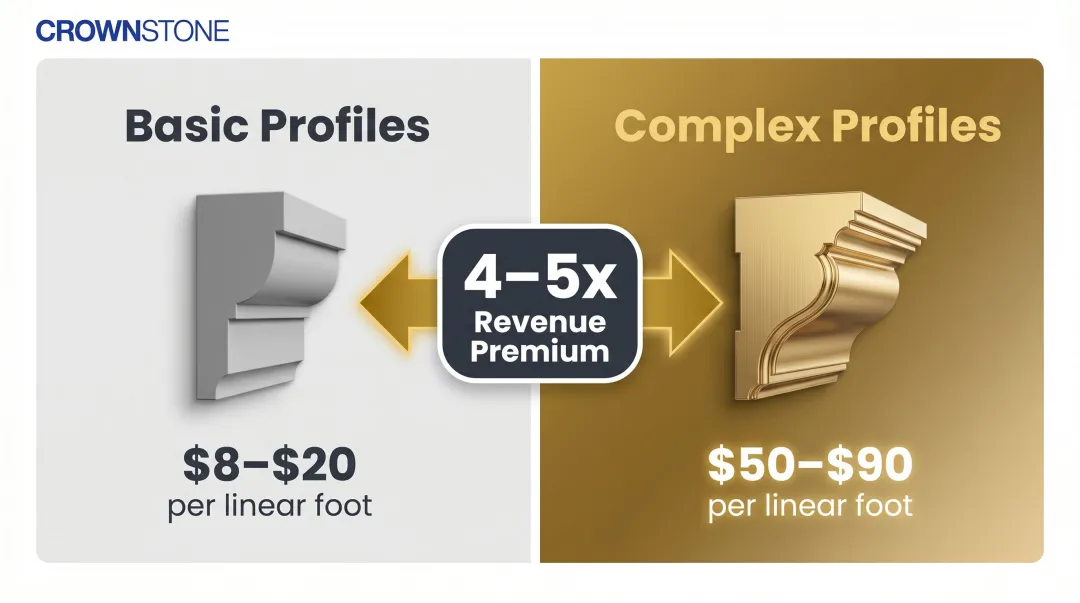

Economic Impact of Edge Profiles:
Edge complexity drives CNC adoption because it unlocks higher-margin work. Basic edge profiles like eased edge or demi-bullnose cost $8-$20 per linear foot and can often be achieved with manual edge machines. Complex profiles like double ogee or waterfall edges command $50-$90 per linear foot—a 4-5x premium—but require CNC routing capability to execute consistently. This price gap represents the revenue opportunity CNC routing unlocks.
Real-World CNC Scaling Example:
Universal Stone of Shakopee, Minnesota scaled to 9-12 kitchens per day in a single shift using three Park Industries TITAN CNC routers. The shop reduced monthly downtime from 24 hours to just 4 hours after adding integrated water management. For a mid-size shop targeting volume growth without sacrificing custom work, that kind of throughput shift is the real argument for CNC routing.
CNC Stone Router vs Bridge Saw: Which Machine Does Your Shop Need?
The decision hinges on three factors: your primary order type, your current workflow stage, and your budget for initial investment plus ongoing tooling and programming costs.
Choose a Bridge Saw If:
- The majority of your work is high-volume countertop production for kitchen and bath
- You need fast, repeatable straight and miter cuts with minimal setup time
- Your priority is throughput efficiency and low operating cost per cut
- You're establishing a new fabrication shop and need foundational cutting capability
The bridge saw is the right starting point for most new fabrication shops. With 72% of shops relying on bridge saws for initial cuts, it's the industry's proven workhorse for countertop production.
Choose a CNC Stone Router If:
- You're servicing custom design requests requiring complex edge profiles
- Manual or handheld profiling tools can't deliver the precision or consistency your orders demand
- You're targeting higher-margin decorative and monument work
- Your customer base is asking for waterfall edges, intricate engravings, or custom shapes
Grassie Granite in Myrtle Beach used a Bavelloni CNC router to create custom "scalloped" edge detail in Blue Pearl granite: a wave-like pattern of peaks and valleys with a full bullnose applied to the scalloped shape. Fabricator Joe Blackmon noted: "It really isn't something you could do by hand. All of those peaks and valleys have to be perfectly spaced." The CNC router delivered finished pieces ready to install with no additional hand finishing.
Most Full-Service Shops Need Both
That contrast tells the real story: these machines aren't competing — they cover different stages of the same job. For growing shops, the answer is usually both, used in sequence. The bridge saw handles primary slab sizing and straight cuts efficiently. The CNC router takes over for edge detailing, cutouts, and custom shapes. This workflow pairing expands shop capability without overlap, letting each machine run at its highest value task.
Universal Stone's workflow illustrates this integration: their sawjet feeds slabs into the TITAN router seamlessly, with the bridge saw performing initial cuts and the CNC routers handling finishing work. This sequential approach enabled them to scale to 60+ kitchens per week with three CNC units running in a single shift.
Conclusion
A bridge saw and a CNC stone router don't compete for the same job—one cuts slabs down, the other shapes and refines them. The right choice depends on what stage of fabrication represents your core business and what your customers are asking for.
For shops focused on volume countertop production, a reliable bridge saw delivers the highest ROI. It's the foundational investment that enables you to process slabs efficiently and consistently. For shops adding custom capabilities or moving upmarket, a CNC router unlocks orders that straight-cut equipment simply cannot fulfill—complex edge profiles, decorative engravings, and custom shapes that command premium pricing.
Before committing to either machine, assess your current order mix and where your growth is headed:
- Mostly standard countertops with eased or pencil edges? The bridge saw is your priority — and the foundation Crown Stone USA builds its equipment around.
- Customers requesting waterfall edges, custom curves, or decorative inlays? The CNC router becomes essential.
- Building a full-service shop? Budget for both, sequenced in the workflow where each fits naturally.
Frequently Asked Questions
Can a CNC router cut stone?
Yes, CNC routers cut stone effectively when equipped with diamond-tipped router bits and profile wheels designed for stone fabrication. Standard woodworking or metal bits fail immediately — stone requires grinding action, not shearing.
Do they make router bits for stone?
Yes — diamond-bonded profile wheels, finger bits, and core bits are all widely available for stone work. Bit selection matters: sintered diamond bits perform best on granite, electroplated bits suit marble engraving, and PCD bits are the go-to for quartz.
What software is used for stone carving?
Common platforms include Alphacam (with a dedicated Stone Module), Mastercam for toolpath generation, and ArtCAM for decorative reliefs. They all work from standard DXF, DWG, or STEP design files.
What is the difference between a CNC bridge saw and a CNC stone router?
A CNC bridge saw is a computer-controlled version of a traditional bridge saw—it still uses a large diamond blade for straight and angled cuts across slabs. A CNC stone router uses a spindle with interchangeable bits for profiling, carving, and complex shaping. Both are CNC machines, but they handle entirely different tasks on the shop floor.
Do I need both a CNC stone router and a bridge saw in my shop?
Most full-service fabrication shops benefit from having both. The bridge saw handles slab sizing and straight cuts efficiently at low cost per cut, while the CNC router handles edge profiles, cutouts, and custom work that command premium pricing. Smaller or newer shops often start with a bridge saw and add a CNC router as custom order volume grows.
Which machine is better for countertop fabrication?
The bridge saw is the workhorse for countertop production—handling primary slab cuts quickly and at low operating cost. The CNC router adds value for edge profiling and sink cutouts but isn't essential for basic countertop work.
